CTIA’s TZM Alloy in Furnace Heat Shields

CTIA’s TZM alloy (Titanium Zirconium Molybdenum) uses molybdenum (Mo) as the matrix with titanium (Ti), zirconium (Zr), and carbon (C) additions to form TiC and ZrC dispersion-strengthened phases. Manufactured through powder metallurgy, CTIA’s TZM alloy undergoes raw material control, uniform powder mixing, compaction, sintering, hot working, and precision machining processes to achieve stable microstructure and reliable high-temperature performance. TZM meets the requirements of furnace heat shields exposed to high-temperature radiation, thermal cycling, and vacuum or protective atmosphere conditions, including high-temperature strength, thermal deformation resistance, dimensional stability, and long-term service reliability. CTIA’s TZM alloy is suitable for multi-layer heat shields, radiation shields, thermal insulation covers, and other thermal management components in high-temperature furnaces, helping reduce heat radiation loss and improve temperature uniformity and operational stability.

Advantages of CTIA’s TZM Alloy in Furnace Heat Shields

(1) Stable High-Temperature Performance
Melting point of approximately 2620℃ and excellent high-temperature strength maintain structural stability under long-term thermal radiation conditions in high-temperature furnaces, meeting continuous service requirements for heat shields.

(2) Strong Resistance to Thermal Deformation
Excellent creep resistance and a recrystallization temperature of approximately 1350–1450℃ reduce dimensional changes during prolonged high-temperature exposure and improve the stability of heat shield structures.

(3) Excellent Thermal Cycling Performance
A coefficient of thermal expansion of approximately 5.5–5.9×10⁻⁶/K reduces thermal stress during heating and cooling cycles, improving resistance to repeated thermal cycling.

(4) Excellent High-Temperature Microstructural Stability
TiC and ZrC dispersion-strengthened phases inhibit grain growth at elevated temperatures, maintaining stable microstructure and improving long-term service reliability.

(5) Strong Machining Adaptability
CTIA provides precision machining of TZM products according to furnace structures and heat shield design requirements.

Applications of CTIA’s TZM Alloy in Furnace Heat Shields
CTIA’s TZM alloy is mainly used in thermal management structures of high-temperature equipment, including:

(1) Vacuum Heat Treatment
Used for multi-layer heat shields, radiation shields, and thermal insulation covers in vacuum heat treatment furnaces under long-term high-temperature cycling conditions.

(2) Powder Metallurgy
Used for heat shield components in vacuum sintering furnaces and high-temperature sintering equipment to reduce heat loss and improve temperature uniformity during sintering.

(3) Semiconductor and Crystal Manufacturing
Used for thermal insulation structures in crystal growth furnaces and high-temperature material processing equipment, meeting stable operation requirements in clean high-temperature environments.

(4) Aerospace and Energy Equipment
Used for heat shield components in high-temperature test furnaces and special material processing equipment to improve thermal efficiency and operational reliability.

Specifications of CTIA’s TZM Alloy in Furnace Heat Shields

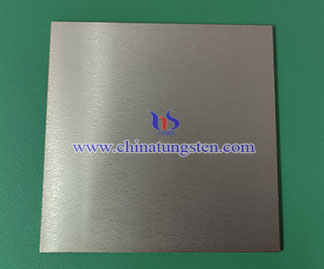

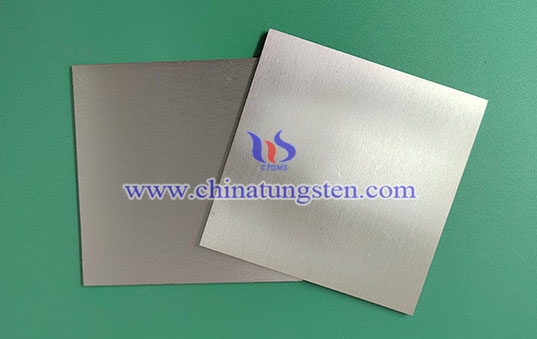

(1) Supply Forms: TZM plates, thin sheets, discs, and heat shield components.

(2) Customization: Dimensions and structures can be customized.

(3) Machining: Cutting, stamping, turning, milling, grinding, and other precision machining processes are available.

CTIA GROUP has nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, specializing in powder metallurgy production and precision machining. With integrated capabilities from material preparation to high-temperature component manufacturing, CTIA provides TZM alloy solutions for furnace heat shields according to different equipment conditions and operating requirements. Through strict control of raw material quality, production processes, microstructure, and machining accuracy, CTIA ensures stable performance and reliable quality of TZM products, including TZM plates, sheets, and customized heat shield components.
