CTIA’s TZM Alloy in Rocket Nozzle Throat Liners

CTIA’s TZM alloy (Titanium Zirconium Molybdenum) is manufactured through powder metallurgy processes and provides good high-temperature strength, creep resistance, thermal stability, and dimensional stability for extreme thermal environments. Rocket engine nozzle throat liners are exposed to high-temperature gas erosion, intense heat flux, and thermal cycling during operation, requiring materials with excellent high-temperature load-bearing capability and structural stability. CTIA’s TZM alloy is suitable for rocket engine nozzle throat liners and other high-temperature hot-end structural components, widely used in space propulsion systems, high-temperature testing equipment, and related applications.

Advantages of CTIA’s TZM Alloy in Rocket Nozzle Throat Liners
(1) High-Temperature Strength
Maintains reliable load-bearing capability under high-temperature thermal loads and mechanical stresses in nozzle throat regions during engine operation.
(2) Thermal Shock Resistance
Withstands rapid temperature changes during engine startup, operation, and shutdown, reducing structural damage caused by thermal stress.
(3) High-Temperature Stability
Provides excellent creep resistance to reduce deformation during long-term high-temperature exposure and maintain nozzle dimensional stability.
(4) High-Temperature and Vacuum Compatibility
Offers low volatility and stable high-temperature performance to meet the demanding conditions of space propulsion systems.
(5) Precision Machining Capability
Supports precision machining according to nozzle throat liner structures, meeting complex hot-end component manufacturing requirements.

Applications of CTIA’s TZM Alloy in Rocket Nozzle Throat Liners
(1) Liquid Rocket Engines
Used for nozzle throat liners and high-temperature hot-end structural components exposed to high-temperature gas erosion and thermal loads.
(2) Solid Rocket Engines
Used for high-temperature nozzle throat components under transient high-temperature and intense heat flux conditions.
(3) Space Propulsion Systems
Used for high-temperature load-bearing and thermal protection structural components to improve propulsion system reliability.
(4) High-Temperature Testing Equipment
Used for high-temperature structural components in engine material testing and thermal environment simulation equipment.

Specifications of CTIA’s TZM Alloy in Rocket Nozzle Throat Liners

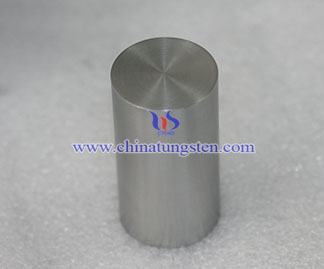

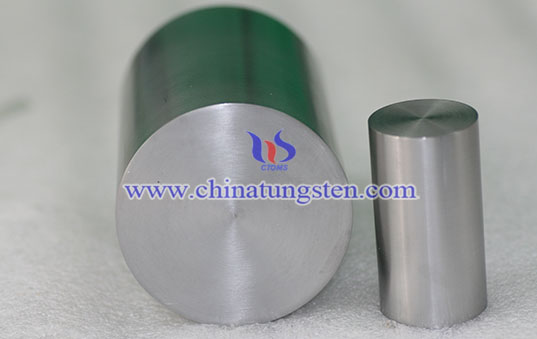

(1) Product Forms: TZM rods, round blanks, and precision-machined nozzle throat liners.
(2) Dimensions: Customized diameters, heights, and structural dimensions are available.

CTIA GROUP has nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, with integrated capabilities from raw material control and material production to precision machining. Through strict process control, CTIA provides TZM rods, round blanks, and precision-machined nozzle throat liners with uniform microstructure and stable performance. According to nozzle throat liner designs and service conditions, CTIA develops high-precision high-temperature components for extreme temperatures and thermal shock environments.
