CTIA’s TZM Alloy in Sapphire Crystal Growth Furnace

TZM alloy (Titanium Zirconium Molybdenum) used in sapphire crystal growth furnaces is manufactured through powder metallurgy processes. By precisely controlling Ti (0.40–0.55%), Zr (0.06–0.12%), and C (0.01–0.04%) contents, TiC and ZrC dispersion-strengthened phases are formed, providing excellent high-temperature strength, creep resistance, dimensional stability, and vacuum compatibility. Sapphire crystal growth requires long-term operation at 1800–2200℃ under vacuum or inert atmosphere conditions, where furnace components are continuously exposed to thermal radiation, temperature cycling, and mechanical loads. CTIA’s TZM alloy is suitable for crucible supports, thermal field structural components, heat shield supports, and other high-temperature components, and is widely used in sapphire crystal manufacturing applications for LED substrates, optical crystals, and electronic materials.

Advantages of CTIA’s TZM Alloy in Sapphire Crystal Growth Furnace
(1) Strong High-Temperature Load-Bearing Capability
Maintain structural stability under long-term thermal and mechanical loads during sapphire crystal growth, reducing deformation at elevated temperatures.
(2) Excellent High-Temperature Deformation Resistance
Provide good creep resistance to minimize dimensional changes during prolonged high-temperature operation and maintain thermal field stability.
(3) Stable High-Temperature Microstructure
Suppress grain growth at elevated temperatures through dispersion-strengthened phases, maintaining stable material performance during long-term service.
(4) Good Vacuum Compatibility
Deliver reliable performance with good high-temperature stability and low volatility, meeting the requirements of sapphire crystal growth furnaces operating under vacuum or protective atmospheres.
(5) Precision Machining Capability
Support customized machining according to crystal growth equipment structures and installation requirements for complex high-temperature components.

Applications of CTIA’s TZM Alloy in Sapphire Crystal Growth Furnace
(1) LED Substrate Manufacturing
Used for crucible support components, thermal field structures, and high-temperature load-bearing parts to meet long-term high-temperature operating requirements during sapphire crystal growth.
(2) Optical Crystal Manufacturing
Used for internal supports, positioning components, and thermal field parts to maintain structural stability during high-temperature crystal growth.
(3) Electronic Material Manufacturing
Used for high-temperature structural components in high-purity sapphire crystal production equipment to improve operational reliability.
(4) Sapphire Crystal Growth Equipment
Used for heat shield supports, connecting components, and other furnace components under continuous high-temperature, vacuum, or protective atmosphere conditions.

Specifications of CTIA’s TZM Alloy in Sapphire Crystal Growth Furnace
(1) Component Types: Crucible supports, thermal field structural components, heat shield supports, and other high-temperature precision components.
(2) Dimensions: Customized sizes and complex structures are available.

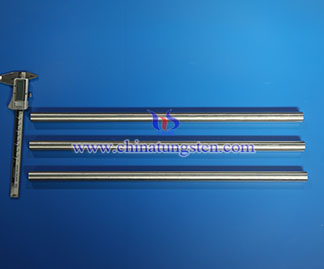

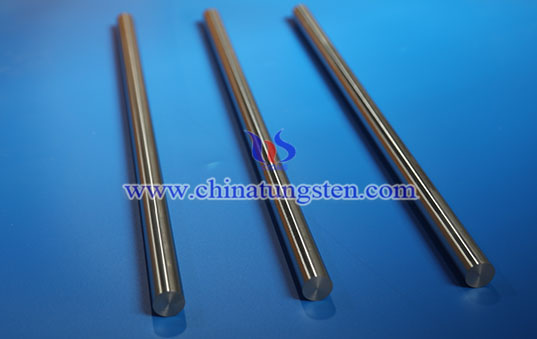

CTIA GROUP has nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, with expertise in powder metallurgy, and precision machining. CTIA provides TZM plates, rods, blocks, and customized high-temperature components for sapphire crystal growth applications, ensuring reliable performance under demanding high-temperature and vacuum conditions.
