CTIA’s TZM Alloy in Furnace Structural Components

CTIA’s TZM alloy (Titanium Zirconium Molybdenum) is manufactured through powder metallurgy processes, including raw material control, uniform powder mixing, compaction, sintering, hot working, and precision machining, to achieve stable microstructure and reliable high-temperature performance. Furnace structural components operate under long-term exposure to high temperatures, thermal cycling, and vacuum or protective atmosphere conditions, requiring materials with excellent high-temperature strength, creep resistance, dimensional stability, and structural reliability. CTIA’s TZM alloy provides excellent high-temperature load-bearing capability and deformation resistance, making it suitable for support frames, support rods, load-bearing beams, fixing components, and other high-temperature structural parts in furnaces, meeting long-term service requirements under high-temperature operating conditions.

Advantages of CTIA’s TZM Alloy in Furnace Structural Components

(1) Strong High-Temperature Load-Bearing Capability
Melting point of approximately 2620℃ and excellent high-temperature strength enable stable support structures under the weight of furnace loads and continuous thermal stress.

(2) Excellent Creep Resistance
Reduces plastic deformation and dimensional changes under long-term high-temperature loading conditions, improving the service reliability of furnace structural components.

(3) Excellent High-Temperature Microstructural Stability
TiC and ZrC dispersion-strengthened phases inhibit grain growth at elevated temperatures, maintaining stable microstructure during long-term operation and extending structural service life.

(4) Reliable Thermal Cycling Stability
A coefficient of thermal expansion of approximately 5.5–5.9×10⁻⁶/K reduces thermal stress generated during heating and cooling cycles, improving resistance to thermal fatigue.

(5) Strong Machining Adaptability
CTIA provides precision machining of TZM products according to furnace structures, installation methods, and load-bearing requirements, producing support components with different dimensions and structural designs.

Applications of CTIA’s TZM Alloy in Furnace Structural Components
CTIA’s TZM alloy is mainly used in load-bearing and fixing structures of high-temperature equipment, including:

(1) Vacuum Heat Treatment Equipment
Used for workpiece supports, support frames, and load-bearing components to ensure stable support during long-term high-temperature heat treatment processes.

(2) Vacuum Sintering Equipment
Used for sintering supports, support beams, and fixing structures to withstand the weight of sintered products and high-temperature operating conditions.

(3) Crystal Growth Equipment
Used for internal furnace supports and positioning structures to maintain positional stability during crystal growth processes.

(4) Aerospace, Energy, and Advanced Material Manufacturing Equipment
Used for load-bearing structural components in high-temperature test furnaces and material processing equipment under complex high-temperature conditions.

Specifications of CTIA’s TZM Alloy in Furnace Structural Components

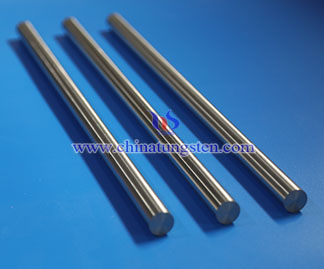

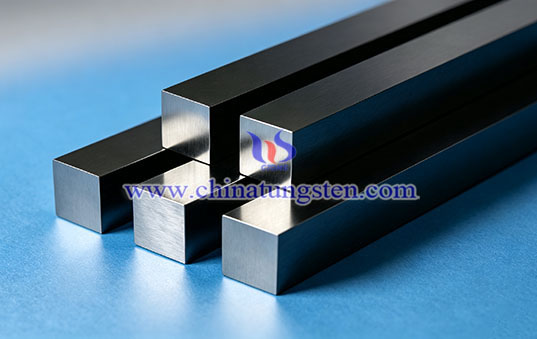

(1) Supply Forms: TZM plates, rods, blocks, support rods, load-bearing components, and customized structural parts.

(2) Customization: Different lengths, thicknesses, diameters, and structural dimensions are available.

CTIA GROUP has nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, specializing in TZM alloy development, powder metallurgy production, and precision machining. With integrated manufacturing capabilities from material preparation to high-temperature component processing, CTIA strictly controls material microstructure, production processes, and machining accuracy to ensure stable performance and reliable quality of TZM structural components. CTIA provides customized machining solutions according to furnace structures and operating conditions.
