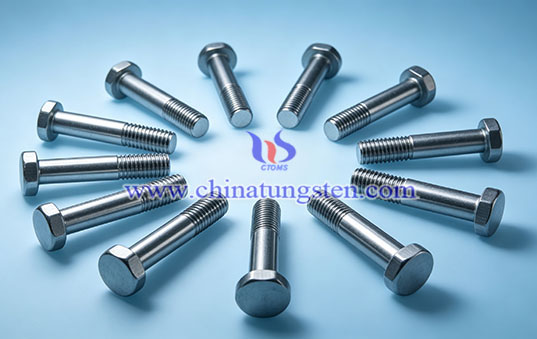

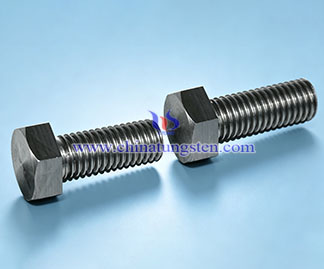

CTIA’s TZM Alloy Screw

1. What's TZM Alloy Screw?
TZM Alloy Screw (Titanium Zirconium Molybdenum Alloy Screw) is a high-temperature precision fastening component manufactured through powder metallurgy using molybdenum (Mo) as the matrix with titanium (Ti: 0.40%–0.55%), zirconium (Zr: 0.06%–0.12%), and carbon (C: 0.01%–0.04%) additions to form TiC and ZrC dispersion-strengthened phases. Designed for small component fixation and precision assembly in high-temperature, vacuum, and thermal cycling environments, CTIA’s TZM alloy screw maintains excellent thread accuracy and reliable fastening performance during long-term service due to its superior high-temperature strength, creep resistance, and dimensional stability.

2. Advantages of CTIA’s TZM Alloy Screw
(1) High-temperature precision assembly capability: Offering a room-temperature tensile strength of 600–900MPa and excellent rigidity, the screw meets the load-bearing requirements of small fastening components under high-temperature conditions while reducing deformation and failure risks.

(2) Excellent thread dimensional stability: With a recrystallization temperature of approximately 1350–1450°C and a low coefficient of thermal expansion of 5.5–5.9×10⁻⁶/K, the screw minimizes thread dimensional changes during repeated heating and cooling cycles, maintaining assembly accuracy.

(3) High resistance to thermal loosening: Excellent creep resistance reduces preload loss under long-term thermal loads, allowing the screw to maintain reliable fastening performance during continuous operation.

(4) Compact installation adaptability: The compact structure and low weight of screw make it suitable for component fixation in space-limited areas, high-temperature chambers, and precision equipment.

(5) Excellent vacuum and high-temperature stability: With a high melting point of approximately 2620°C, low vapor pressure, and excellent structural stability at elevated temperatures, the screw is suitable for long-term use in vacuum environments.

3. Applications of CTIA’s TZM Alloy Screw
CTIA’s TZM alloy screw is mainly used in: (1) fixation of heat shields, heating components, and small structural parts in vacuum furnaces and high-temperature furnaces; (2) assembly of high-temperature chambers, wafer processing components, and precision parts in semiconductor equipment; (3) connection of high-temperature components in electron beam equipment and vacuum electronic devices; (4) heat-resistant fastening components in sapphire crystal growth furnaces and heat treatment equipment.

4. Specifications of CTIA’s TZM Alloy Screw
(1) Types: Cylindrical head screws, pan head screws, countersunk screws, socket head screws, and customized designs

(2) Dimensions: Customized diameters, lengths, thread specifications, and head dimensions

(3) Customization: Non-standard structures available

CTIA GROUP has nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, with capabilities in TZM material development, powder metallurgy production, and precision machining. Through strict control of alloy composition, sintering densification, and machining quality, CTIA supplies high-performance TZM screws, as well as TZM plates, TZM rods, and customized TZM components. Micro-scale structures and non-standard dimensions can be customized to meet long-term reliable fastening requirements in high-temperature, vacuum, and precision equipment applications.
