CTIA's TZM Alloy in Hot Forming Dies

TZM alloy (Titanium Zirconium Molybdenum) is a high-performance molybdenum-based alloy with molybdenum (Mo) as the matrix and titanium (Ti: 0.40%–0.55%), zirconium (Zr: 0.06%–0.12%), and carbon (C: 0.01%–0.04%) additions forming TiC and ZrC dispersion-strengthened phases. CTIA manufactures customized TZM components for hot forming dies through powder metallurgy (PM), including cold isostatic pressing, high-temperature vacuum sintering, hot forging, and precision CNC (Computer Numerical Control) machining. With a recrystallization temperature approximately 400°C higher than pure molybdenum and excellent high-temperature stability, TZM alloy is particularly suitable for critical load-bearing components in hot forming dies.

1. Advantages of CTIA’s TZM Alloy in Hot Forming Dies
(1) Excellent high-temperature strength: Withstand high-temperature loads and continuous pressure during hot forming processes, with a tensile strength of ≥200MPa at 1200°C.

(2) Outstanding creep resistance: Maintain dimensional stability during long-term high-temperature operation, with a low creep rate at 1000°C under 10MPa.

(3) High hardness and wear resistance: Provide excellent wear resistance at elevated temperatures and extend component service life, with a room-temperature Vickers hardness of HV≥220.

(4) Excellent dimensional stability: Maintain high precision after repeated thermal cycling, with a coefficient of thermal expansion of approximately 5.0×10⁻⁶/K.

(5) Good thermal conductivity and thermal shock resistance: Adapt to rapid heating and cooling conditions, with thermal conductivity of 120–140W/(m·K).

(6) High customization flexibility: Support complex structures, thin-wall components, and high-precision fitting requirements for customized die components.

2. Applications of CTIA’s TZM Alloy in Hot Forming Dies
CTIA’s TZM alloy is mainly used in:

(1) Aerospace: Cavity inserts, punches, and mandrel components in hot forming dies for titanium alloy sheets, nickel-based superalloys, and high-performance alloy parts;

(2) Automotive manufacturing: Forming cores, guide posts, and heat-resistant structural components in hot stamping dies for aluminum alloys, magnesium alloys, and high-strength steel sheets;

(3) Energy equipment and advanced manufacturing: Heating plates, blank holders, and high-temperature load-bearing components in hot forming dies for stainless steel and high-strength steel sheets;

(4) Glass, ceramics, and composite material processing: Heated working components and precision forming components in hot pressing dies;

(5) Powder metallurgy and advanced material manufacturing: Structural supports and heat-resistant forming components in high-temperature hot pressing equipment.

3. Specifications of CTIA’s TZM Alloy in Hot Forming Dies

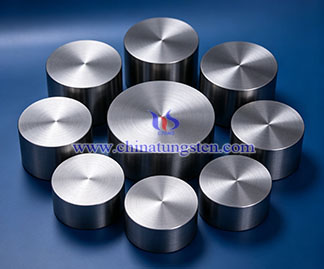

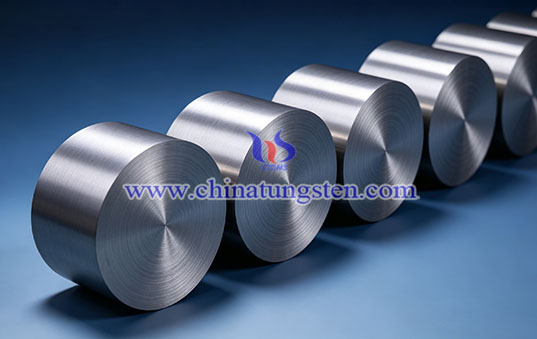

(1) Supply Forms: TZM blocks, plates, rods, discs, rings, and customized hot forming die components.

(2) Machining Capabilities: Precision machining of complex structures, including cavity inserts, punches, mandrels, forming cores, and guide posts.

(3) Customization: Customized dimensions, structures, and surface finishes available according to customer requirements.

(4) Service Temperature: 1000–1450°C with stable performance under protective atmospheres or vacuum conditions.

With nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, CTIA GROUP has developed integrated capabilities covering TZM material development, powder metallurgy production, and precision machining. By strictly controlling material purity, microstructural uniformity, and machining accuracy, CTIA ensures excellent dimensional stability of TZM products under high-temperature and thermal cycling conditions. CTIA supplies TZM blocks, plates, rods, tubes, and other hot forming die components, with customized solutions for non-standard dimensions and complex structures to meet demanding thermal environment applications.
