CTIA’s TZM Alloy in Sintering Boats

CTIA’s TZM alloy (Titanium Zirconium Molybdenum) in sintering boats is a molybdenum-based alloy dispersion-strengthened by TiC and ZrC carbide phases through Ti, Zr, and C additions. Produced via powder metallurgy and precision machining, it delivers a stable microstructure and reliable high-temperature performance. As critical load-bearing components in the high-temperature sintering of powder metallurgy, cemented carbides, and ceramics, sintering boats must endure extreme heat, thermal cycling, and heavy loads. This demands exceptional high-temperature strength, deformation resistance, and dimensional stability. TZM is ideal for manufacturing sintering boats, setter plates, and trays for demanding sintering processes.

Advantages of CTIA’s TZM Alloy in Sintering Boats
(1) Strong High-Temperature Load-Bearing Capability
With a melting point of approximately 2620℃, it maintains high-temperature strength and withstands continuous thermal loads with reduced deformation.
(2) Excellent Thermal Deformation Resistance
With a recrystallization temperature of approximately 1350–1450℃, it provides creep resistance and maintains dimensional stability during long-term sintering.
(3) Reliable Thermal Cycling Stability
With a coefficient of thermal expansion of approximately 5.5–5.9×10⁻⁶/K, it reduces thermal stress during repeated heating and cooling cycles.
(4) Excellent Microstructural Stability
TiC and ZrC dispersion-strengthened phases inhibit grain growth and maintain stable performance during long-term high-temperature operation.
(5) Strong Machining Adaptability
Precision machining is available for sintering boats, sintering plates, and customized structural components according to application requirements.

Applications of CTIA’s TZM Alloy in Sintering Boats
CTIA’s TZM products are mainly applied as high-temperature load-bearing components in sintering processes, including:
(1) Powder Metallurgy
Used for sintering boats and trays during metal powder and high-temperature alloy powder sintering processes, supporting continuous high-temperature thermal cycling.
(2) Cemented Carbide
Used as load-bearing components for cemented carbide sintering, maintaining dimensional stability under high-temperature conditions.
(3) Ceramics and Electronic Materials
Used for high-temperature load-bearing components during the sintering of advanced ceramics, electronic ceramics, and functional materials.
(4) Advanced Material Manufacturing
Used for sintering boats in high-temperature material processing equipment, supporting long-term stable operation.

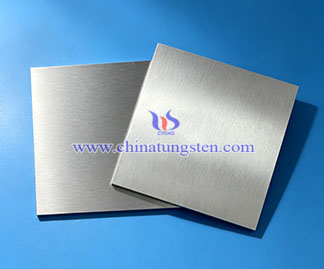

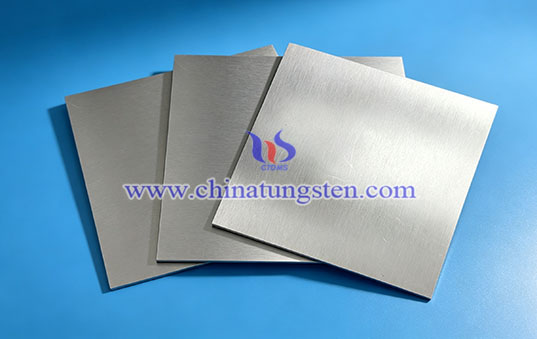

Specifications of CTIA’s TZM Alloy in Sintering Boats
(1) Dimensions: Customized in length, width, thickness, and structural dimensions.
(2) Structures: Available in flat, grooved, and customized designs according to sintering furnace specifications and load requirements.

CTIA GROUP has nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, specializing in powder metallurgy and precision machining. With integrated capabilities from material preparation to component manufacturing, CTIA provides TZM alloy solutions for sintering boat applications, including sintering boats, plates, trays, and customized high-temperature components. Strict control of material structure, manufacturing processes, and machining accuracy ensures stable performance and reliable quality of TZM products.
